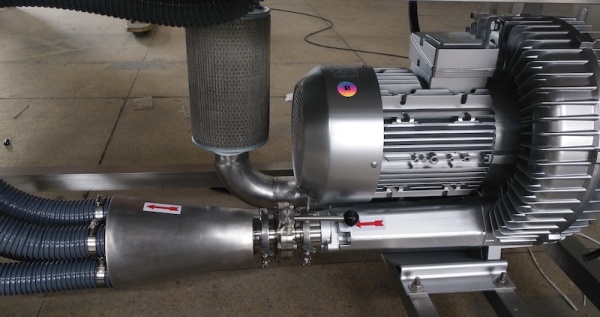

- (1) High–performance 5.5 kw blower.
- (2) frame material: SUS 304 stainless steel.
- (3) Overload protection, for safety.
- (4) Simple and clean appearance

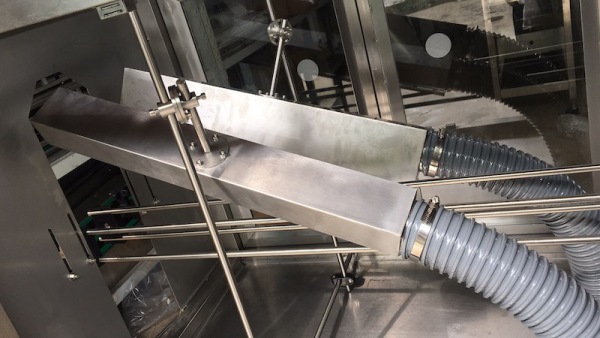

- (5) 2blowing knifes, each 0.5~0.6m long
- (6) Inlet air protection to prevent debris
- (7) wind dosage is adjustable.
- (8) wind knife position is adjustable at all directions.
- (9) there is 1.1m rails bars inside.
Air Dryer with Blowing Knife BD-100
Air Dryer with Blowing Knife BD-100
Kunshan Howfond Machinery Co.,Ltd. is one of the toppest air blowing dryer machine,blow tunnel,Air Dryer with Blowing Knife in China.During these years of exporting , Kunshan Howfond Machinery Co.,Ltd. now has rich experience in the worldwide markets
- Mobile: +86-131-2753-8116
- Skype: zhang7418528
- E-mail: bishop998@126.com
Air Dryer with Blowing Knife is used to remove water after sleeves shrinking by steam tunnel for easy packing or inkjet codes printing on bottles.
The dryer can remove 80~90% water on the surface of bottles.
The dryer can remove 80~90% water on the surface of bottles.
|
Machine |
Machine model |
BD100 |
|
Powder supply |
AC 3Phase :220V~480V |
|
|
Total powder |
5.5KW |
|
|
Entrance width to suit conveyor |
100mm or customized |
|
|
Blowing knifes |
2 Pieces |
|
|
Length of Blowing knifes |
0.6m |
|
|
Blowing motor |
1 set/5.5kw |
|
|
Overload protection |
YES |
|
|
Frame material |
SS304 steel |
|
|
Weight |
250Kgs |
|
|
Size L*W*H |
1.0m*0.72m*1.7m |
