Steam shrink tunnel HF-3000M
Tunnel length 3meters, this model has There insulation cotton layer inside of tunel body, which is energy-saving and efficient for full body sleeve labeling, special shape bottles and high speed production.
Email: bishop998@126.com
Tel/Whatsapp: 8613127538116
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INTRODUCTION
(1) Superb shrink finish with filled or cold bottles
(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(3) Steam tubes are made of SS316
(4) Low running cost, 60kg steam/hour, 0.4~0.6Mpa.
(5) 8 Steam spray tubes are adjustable for complex shapes of bottles.
Available shrink area 2.3~2.4meters, the rest area is used to avoid steam out from two ends of Tunnel.
(5) 8 Steam spray tubes are adjustable for complex shapes of bottles.
Available shrink area 2.3~2.4meters, the rest area is used to avoid steam out from two ends of Tunnel.

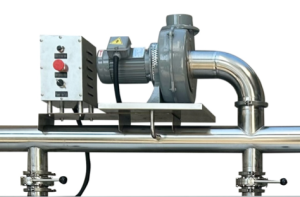

(6) Exhausting blower is on the top of tunnel, exit upwards. A water tray under motor, no any water
dropping outside.
(7) Simple to adjust pipe position and angles, 3 directions.

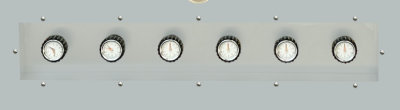

The black handle is used to adjust the distance between two pipes to suit different bottles.There are 6 black handles to adjust steam consumption.
(8) Precise steam precise control by 4 digital handles for 4 areas, and saving steam.
(9) Cancel outer water collection tray, sealed. Can be used for high speed applications.
(10) temperatures inside of tunnel is showed by two thermometers, and one Pressure gauge.
(10) temperatures inside of tunnel is showed by two thermometers, and one Pressure gauge.
(11) Full body of tunnel is made of SS304 stainless steel.
(12) Strong and easy 0perational handles on windows.
(12) Strong and easy 0perational handles on windows.
(13) steam tubes are hided inside, simple and generous, and avoid hurting by hot steam.
(14) water outlet/water collection tray to avoid getting ground wet.
(14) water outlet/water collection tray to avoid getting ground wet.
(15) Self-draining
PARAMETERS
|
Models |
HF-3000M |
|
Length of tunnel |
3meters |
|
Main material |
SS304 |
|
Braided steam soft tubes |
316 |
|
Blower powder |
Ø12, 0.25KW |
|
Running pressure |
Max 0.6Mpa |
|
Weight |
320kg |
|
Steam consumption |
40-50kg/h |
|
Powder supply of blower |
110~240V |
|
Entrance /exit height |
Max 350mm |
|
Entrance /exit width |
130~210mm |
|
Outline size (L*W*H, m) |
2.8*W0.55*1.7 |
* All specification and tooling requirements are subject to Accraply evaluation of all label and product samples. Specifications shown reflect standard machine capabilities. Accraply can also meet other specification requirements. Please email or call for details.
