Steam Shrink Applicator HF-2400M
Kunshan Howfond Machinery Co.,Ltd. is one of the toppest Steam Sleeve Shrinking Tunnel,Steam Shrink Banding Tunnels,Steam Shrink Applicator in China.During these years of exporting , Kunshan Howfond Machinery Co.,Ltd. now has rich experience in the worldwide markets
  • steam shrink tunnel HF-2400M.pdf Catalog
  • Steam Shrink Applicator INTRODUCTION
  • Steam Shrink Applicator PARAMETERS
The HF-2400M Steam Shrink Applicator was designed and developed by HOWFOND company as a result of rapid growth in the use of shrink sleeves, particularly in the form of Sleeve Labels, which highlighted the need for low to high speed shrinking systems to match the performance of sleeve application machines such as the HF-250M,HF-400H sleeve labeling machine.
(1) Superb shrink finish with filled or cold bottles
(2) Windows are installed inside of tunnel’s body with water leaking holes, no water getting out.
(3) Steam tubes are made of SS316 with rubber wrapping.
(4)  Low running cost, 30kg steam/0.3~0.5Mpa.
(5)  6 Steam spray tubes are adjustable for complex shapes of bottles.
(6)  Exhausting blower is on the top of tunnel, its speed is adjustable.
(7)  Simple manual adjustment, and completed control.
(8)  Precise steam control by 3 digital handles for 3 areas, and saving steam.
(9)  Cancel outer water collection tray, sealed. Can be used for high speed applications.
(10) Full body of tunnel is made of SS304 stainless steel
(11) Strong and easy 0perational handles on windows.
(12) steam tubes are hided under tunnel, simple and generous

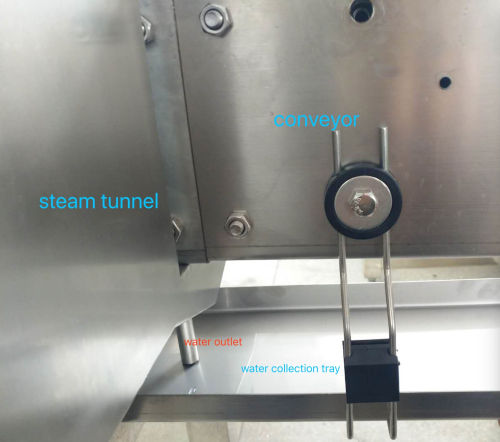

(13) water outlet/water collection tray to avoid getting ground wet.



Length of tunnel


Main material


Braided steam soft tubes


Blower powder

Ø12, 0.25KW

Running pressure

Max 0.6Mpa



Steam consumption


Powder supply of blower


Entrance /exit height

Max 350mm

Entrance /exit width


Outline size (L*W*H, m)


* All specification and tooling requirements are subject to Accraply evaluation of all label and product samples. Specifications shown reflect standard machine capabilities. Accraply can also meet other specification requirements. Please email or call for details.
